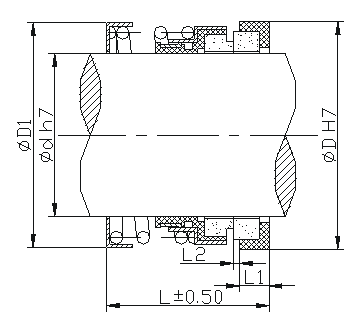

| 型号规格/尺寸 |
d |
D |
D1 |
L |
L1 |
L2 |
| ZX108-12 |
12 |
23 |
24.0 |
20 |
4.5 |
1.5 |
| ZX108-14 |
14 |
25 |
26.0 |
25 |
5.5 |
1.5 |
| ZX108-18 |
18 |
33 |
34.0 |
25 |
5.5 |
1.5 |
| ZX108-20 |
20 |
35 |
36.0 |
25 |
5.5 |
1.5 |
| ZX108-25 |
25 |
40 |
41.0 |
30 |
7.0 |
2.0 |
| ZX108-28 |
28 |
43 |
43.5 |
33 |
7.0 |
2.0 |
| ZX108-30 |
30 |
45 |
46.0 |
33 |
7.0 |
2.0 |
| ZX108-35 |
35 |
50 |
51.0 |
35 |
7.0 |
2.0 |
| ZX108-40 |
40 |
58 |
60.0 |
37 |
8.0 |
2.0 |
| ZX108-45 |
45 |
63 |
65.0 |
37 |
8.0 |
2.0 |
| ZX108-50 |
50 |
70 |
73.0 |
40 |
8.5 |
2.0 |
| ZX108-55 |
55 |
75 |
78.0 |
42 |
8.5 |
2.5 |
|
|
|
|
